Call Flows & TwiML Apps

Twilio call handling in Connect comes in two layers: Call Flows (managed IVR menus rendered as TwiML <Gather>) and TwiML Apps (arbitrary voice logic).

Call Flows (IVR)

Manage under Connect ▸ Twilio ▸ Call Flows (connect.twilio.callflow).

A call flow plays a prompt and gathers a caller response (DTMF and/or speech), then routes to an extension based on the choice.

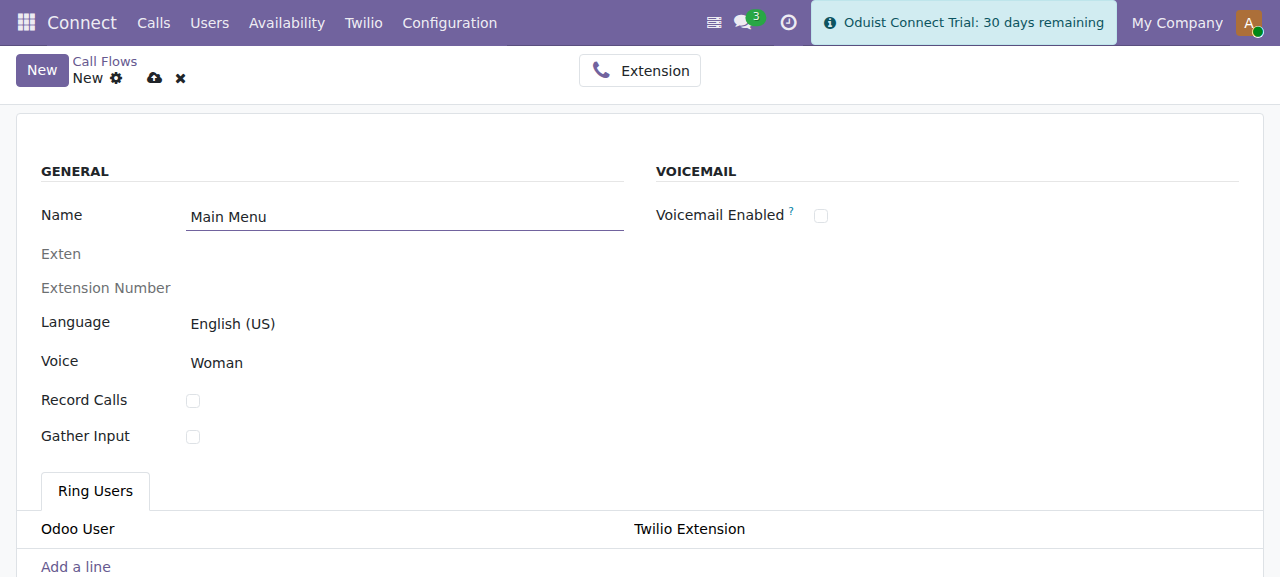

New Call Flow form

A call flow: prompt language and voice, gather/record toggles, ring users and an optional voicemail fallback.

Field Description
Name Call-flow label.
Extension The connect.twilio.exten that points at this flow — created manually with the Extension stat button on the form, not automatically.
Language BCP-47 language for the <Say> prompt (e.g. en-US).
Voice Twilio voice used to read the prompt.
Gather config Input type (DTMF/speech), number of digits, timeout, etc.
Choices One row per menu option: digits, target extension, optional speech hint.
Ring Users Users to ring for a "reception"-style flow.
Record Calls (record_calls) Record the calls this flow delivers.
Voicemail Optional voicemail fallback.

How it runs

  1. The flow renders a TwiML <Gather> wrapping a <Say> prompt. The gather's action URL points at /twilio/webhook/callflow/<id>/gather.
  2. Twilio collects the caller's DTMF/speech and POSTs it back.
  3. gather_action() matches the input against the configured choices and routes the call to the corresponding extension.

Language list is duplicated by design

The BCP-47 language selection is intentionally copied across the Twilio, FreeSWITCH and Telnyx call flows and core connect.user (ADR-031/ADR-037). There is no shared mixin — a change to the list must be applied to every copy in the same commit.

TwiML Applications

Manage under Connect ▸ Twilio ▸ TwiML Apps (connect.twilio.twiml). A TwiML app is a reusable voice application you can attach to a number, an extension, a SIP domain, or a user.

Code Type Field Description
TwiML twiml Raw TwiML XML, rendered as a Jinja2 template.
TwiPy twipy Python code that programmatically builds and returns TwiML.
Model Method model + method Calls a named method on an Odoo model to produce TwiML.

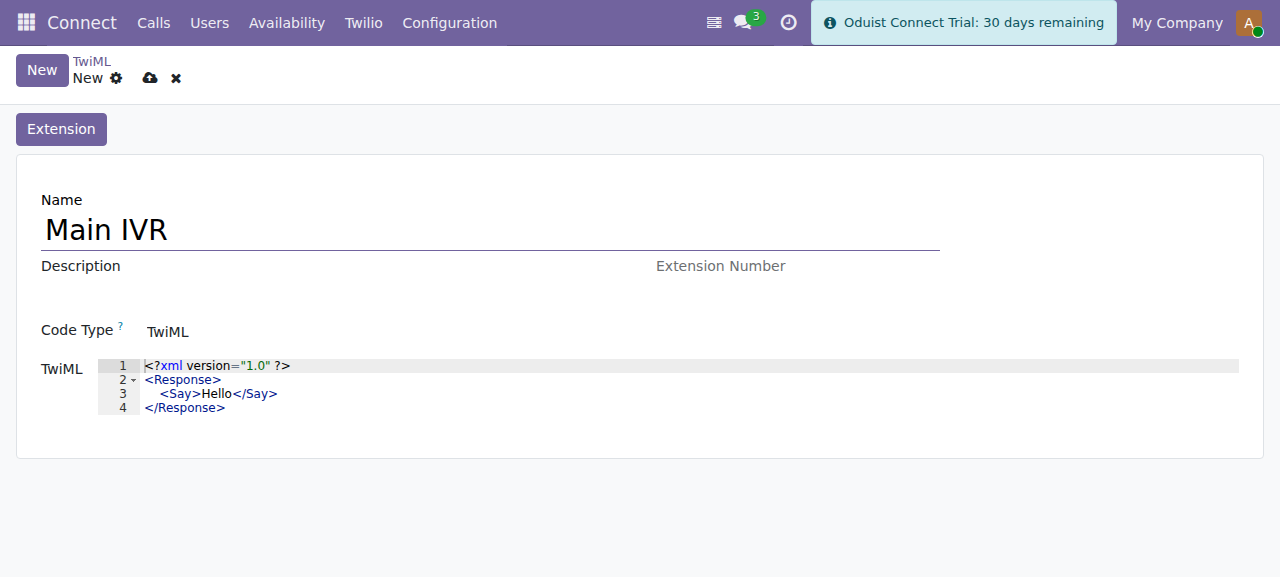

New TwiML application form

A TwiML application. The code type selects raw TwiML, TwiPy (Python) or a model method.

Other fields: Name, Description, computed Voice URL / Voice Fallback URL / Voice Status URL, SID (Twilio Application SID), and an associated Extension.

Lifecycle

  • Creating a TwiML app creates the corresponding Twilio Application via the API. It does not create an extension — use the Extension button on the form to add one for direct dialing.
  • Editing pushes updated webhook URLs to Twilio.
  • Deleting removes the Twilio Application.
  • Inbound voice requests hit /twilio/webhook/twiml/<id>, which calls render() and dispatches to the twiml / twipy / model-method renderer.

TwiPy runs server-side Python

The TwiPy code type executes Python (exec) to generate TwiML. Only Connect Administrators can edit TwiML apps (connect.group_admin has full CRUD; the Connect User group has read-only access). Treat TwiPy code as trusted server code and review it accordingly.

Default TwiML data

The module ships default TwiML in data/twiml.xml. The voice_call_request WhatsApp content template (in data/whatsapp_templates.xml) is used for voice call consent requests.
